AS ONE Mass Flow Controller 50-300 kPa Working Pressure, N2 Gas Type, 5SLM Scale, C1005

Model No: C1005
Type of Product: Mass Flow Controller
Material: (Gas Contact Part) SUS316, PTFE, Fluoro Rubber
Power Supply: +15 V DC 5% 60 mA-15 V DC  5% 150 mA
Connector: 6.35 .SWL Equivalent
Scale: 5SLM: Communication Protocol: Analog 0-5 V DC (D-Sub 9 Pin Connector)
Flow Rate:  2% FS (Accuracy guaranteed Range 15-35 C)
Input/Output: Analog Signal

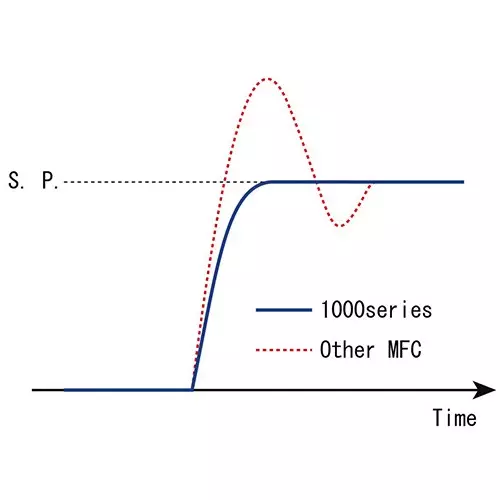

Responsiveness: 6 Secound
Monotaro ID: 20000138
Reproducibility: ?0.2%FS
Withstand Pressure: 1(G) Mpa
Flow Control: 5-100%FS
Gas Type: N2
Valve Type: N / O Normally Open
Part No: 3-5072-02
Working Pressure: 50-300 kPa
Dimension: 127 25.5 100 mm
Suitable Fluid: N2
Input Power: 15 V
